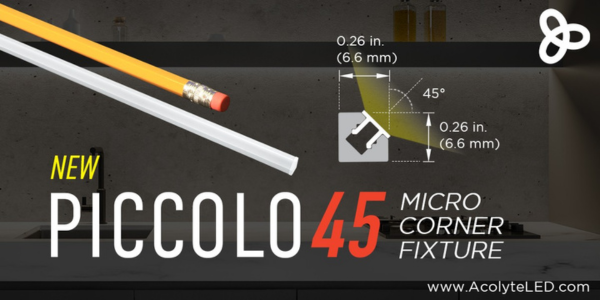

The success of the Piccolo micro fixture spawned demand for an angled version – and once again, Acolyte has delivered. Introducing the new Piccolo 45, designed to create diode-free fine lines of light presented at 45°.



The tiny Piccolo 45 measures just 0.26 x 0.26 in. (6.6 x 6.6 mm) for use in tight spaces, corners and under cabinets.



With a flat milky lens, Piccolo 45 features a micro RibbonLyte that uses 3.0 W/ft (9.8 W/m) to provide 90+ CRI in six available Static White CCTs ranging from 2200K-4000K.



These minute fixtures have short cut lengths, too. Like the original, Piccolo 45 is sold in custom specified sizes ranging from 2.04 in. (51.7 mm) to 6 ft. 5.75 in. (1974.7 mm) long in increments of 1.52 in. (38.46 mm). The Piccolo 45 offers an incredible LED pitch of 55 LEDs/ft (182 LEDs/m) with light output up to 175 lm/ft (572 lm/m) in a 120° beam angle presented at 45°.



Mount with mounting clips or super-strong VHB tape backing.



Piccolo 45 is rated IP20 for indoor use. And it’s compliant with CEC Title 24, Section JA8.



Visit AcolyteLED.com to learn more about the amazing new Piccolo 45 fixture. Be sure to check out our complete line of RibbonLyte, custom channel extrusions, wall washers and grazers, LED neon and backlighting products, as well as all the controls and power supplies you need for complete architectural lighting solutions.





Acolyte is a quality global division of GENLED Brands.
