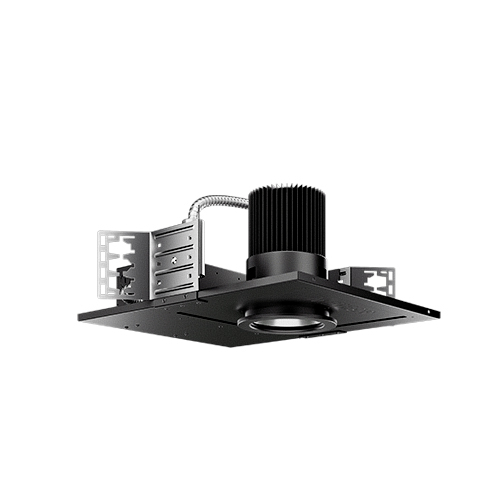

REV 4

by Meteor Lighting

The REV Series is Meteor’s flagship recessed downlight platform, engineered for demanding high-ceiling environments and architectural applications where performance cannot be compromised. Available in 4″, 6″, and 8″ apertures, REV delivers powerful, glare-controlled output capable of supporting mounting heights above 30 ft, making it a proven solution for large-scale commercial and public spaces. As Meteor’s most versatile downlight family, REV supports the full range of proprietary color technologies, including Archi-Color® W+RGB, W+Hue, Tunable White, and Warm Dim. With configurations for new construction and retrofit and lumen packages capable of replacing 400–500 W metal halide fixtures, REV enables substantial reductions in energy use and maintenance.

Beam Angle

45

CRI

85, 93

Color / Finish

Black , Red , Tan , White

Dimming Protocol

DALI , DMX , Forward Phase

Emergency Options

Integral EM Battery

Lamp Life

60000

Lamp Source

LED

Listings

ETL

Materials

Aluminum

Ratings & Compliance

Damp , FCC , Non-IC , TM21

Warranty

5 yr

Watts

20, 40, 60, 80

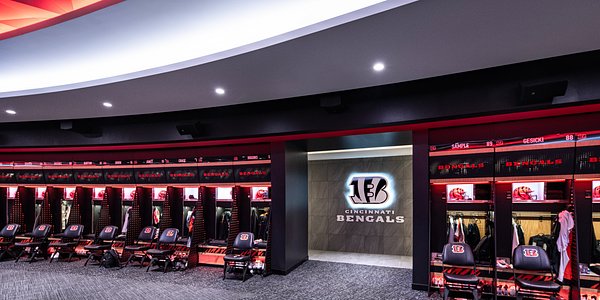

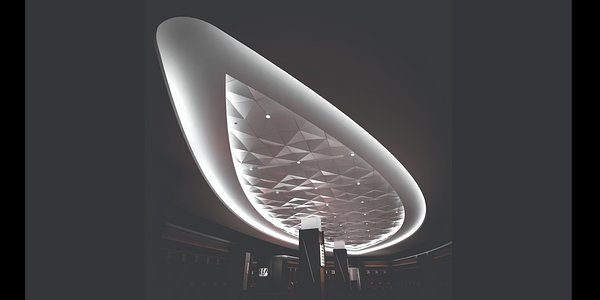

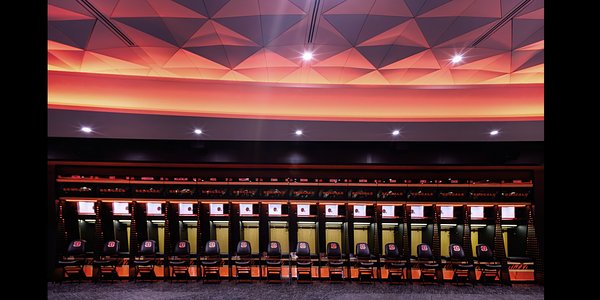

View This Product In Action
