ED DISC+
by Edison Lighting Group

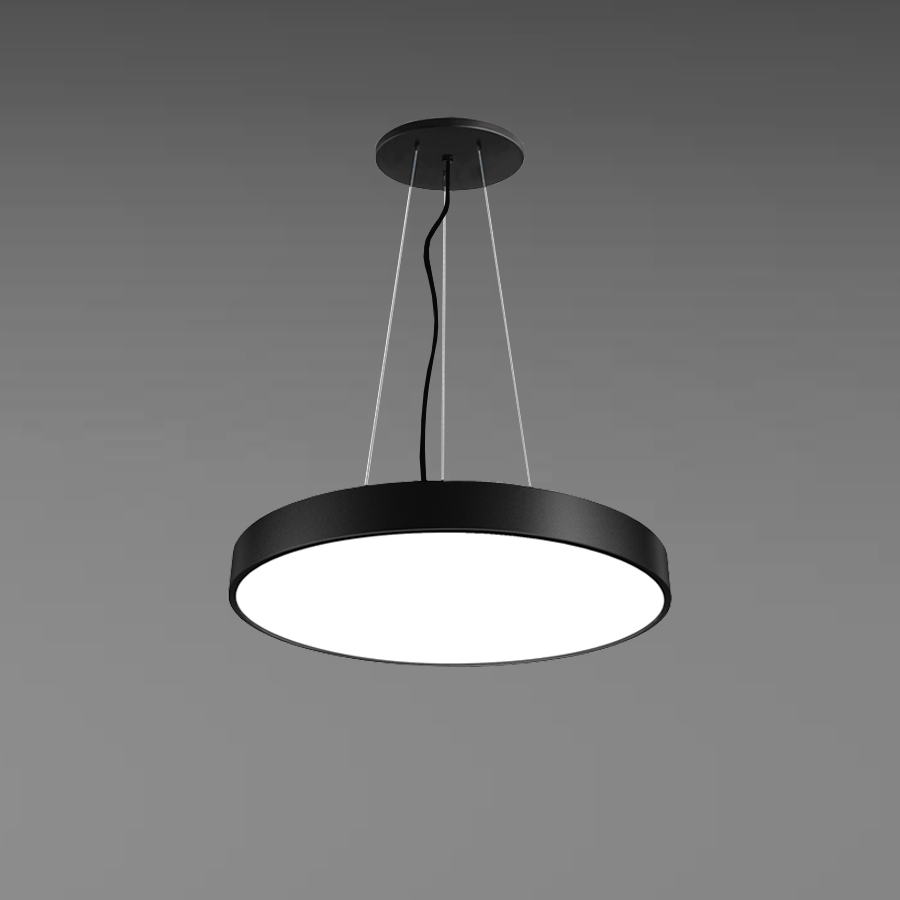

Architectural round luminaire with direct or direct/indirect distribution
Specsheets
CCT
3000K , 3500K , 4000K
CRI
90
Circuit
Single
Color / Finish
Black , White
Diameter
17
Dimensions
W: 17.13 In. H: 3.58 In.
Dimming Protocol
0-10 V , DALI
Dimming Range
0-100% , 1% , Non-Dimmable
Distribution
Direct , Indirect
Lamp Life
60000
Lamp Source
LED
Listings
cULus
Lumens
2800, 2850, 2900, 3725, 3800, 3875
Materials
Aluminum , Polycarbonate
Mounting
Surface , Suspended
Ratings & Compliance
Made in Canada
Shape
Round
Voltage
120-277 V , 347 V
Warranty
5 yr
Watts
30, 40
