ALTAIR - Floodlight - Line Voltage Driver - LED High-Power
by B-K Lighting
Driver:
Line Voltage Driver
Light Source (Type):
LED High-Power
Material:
Aluminum
CCT (K):
2700, 3000, 3500, 4000, 5000
CRI:
Ra > 80, R9 > 50, Ra > 80, R9 > 15
Input Power (W):
90
Delivered Lumens (lm):
8273 - 11273
Beam Angle (°):
7.5, 16.3, 37, 46.8, 58.1, 86.2 x 74.5
Control:
0-10V, Non-dimming
Mount:
Knuckle Slipfitter - Altair, Yoke Mount - Altair
Style:
No Shield, Top Shield, Lexan Shield, Fixed Louver Shield (external), 3 Sided Shield, 4 Sided Shield
Wiring Length:
1 Ft Standard
Finish:
Standard Finishes, Premium Finishes, Other
Accessory:
Knuckle Slipfitter with Mounting Plate, Knuckle Slipfitter with Wall Pole Mounting Arm, Yoke Mount with Horizontal Sector, Yoke Mount with Slipfitter and Mounting Plate, Yoke Mount with Slipfitter, Yoke Mount with Mounting Stud, Yoke Mount Wall Pole Mounting Arm, Yoke Mount with Wall Bracket
CCT
2700K , 3000K , 3500K , 4000K , 5000K
Color / Finish
Black , White
Dimming Protocol
0-10 V
Distribution
Asymmetric , Medium Flood , Narrow , Very Narrow Spot , Wide Flood
Lamp Source
LED
Lumens
8273 Lm, 15467 Lm
Materials
Aluminum , Brass , Chrome , Copper , Steel
Mounting
Arm , Bracket , Fixed , Knuckle , Wall
Ratings & Compliance
Build America Buy America (BABA) , Buy America , Buy American Act (BAA) , Made in America , RoHS
Voltage
120 V , 277 V
Watts
90 w

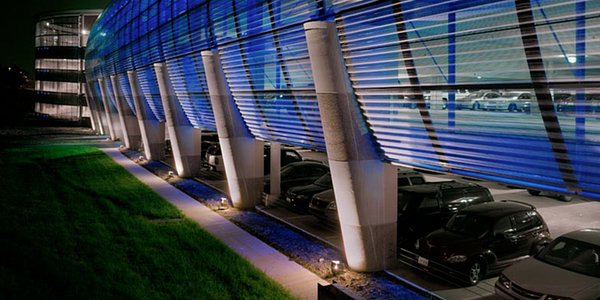

View This Product In Action
