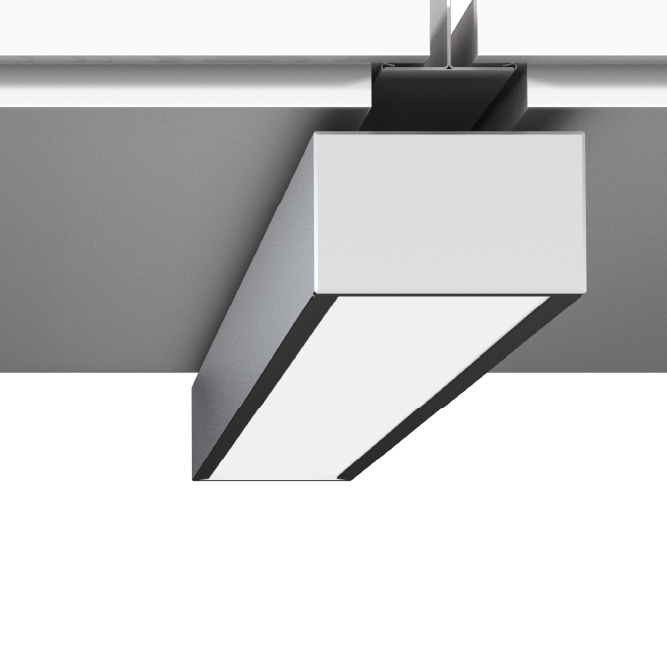

HTG-1 Surface T-Grid
by Extant Architectural Lighting
Engineered for direct T-Grid mounting, the HTG-1 Surface T-Grid delivers sleek, integrated performance with a minimalist 1.5" aperture and ultra-low profile. Powered by Microstructure EdgeTech Optics™ (MEO™), it offers a variety of precision optics including Batwing, Glare Control, Diffused (Lambertian), Wall Wash, and Room Fill. Designed for visual comfort and performance, it supports outputs from 193 to 1480 lm/ft. Available in 2'–8' lengths or seamless continuous runs up to 250 feet without lens breaks or hotspots. Mitered lit corners align cleanly with T-Grid layouts. Features include a toolless “Push to Eject” system for effortless installation and a flush T-Grid mounting mechanism. Custom powder coat finishes, 90+ CRI, Tunable White, and BABA compliance available. Proudly crafted in Huntington Beach, CA.
Specsheets
CCT
2700K , 3000K , 3500K , 4000K , 5000K
CRI
90 CRI
Color / Finish
Custom , Matte Black , Matte White , Silver
Controls Options
Daylight Sensor , Occupancy Sensor
Dimming Protocol
0-10 V , DALI , DMX , ELV (Trailing Edge) , Forward Phase , Lutron EcoSystem , Reverse Phase
Dimming Range
1% , < 1% , Non-Dimmable
Distribution
Batwing , Direct , Glare Control , Lambertian , Wall Wash
Emergency Options
Remote EM Battery
Integrated Brands
Acuity nLight
Lamp Life
60000 hrs, 200000 hrs
Lamp Source
LED
Listings
UL , cUL
Lumens/Linear Ft.
193 Lm/ft, 477 Lm/ft, 940 Lm/ft
Materials
Aluminum
Mounting
Ceiling , Surface
Ratings & Compliance
Build America Buy America (BABA) , Buy American Act (BAA) , Chicago Plenum , Damp , Dry , Interior , JA8 , Made in America , Title 24
Special Programs
Quick Ship
Voltage
120-277 V , 347 V
Warranty
5 yr
Watts / Linear Ft.
1.84 w/lf, 4.55 w/lf, 9.46 w/lf

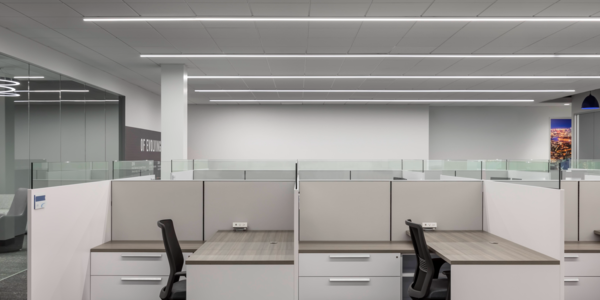

View This Product In Action
