Relay RLY2
by A Light

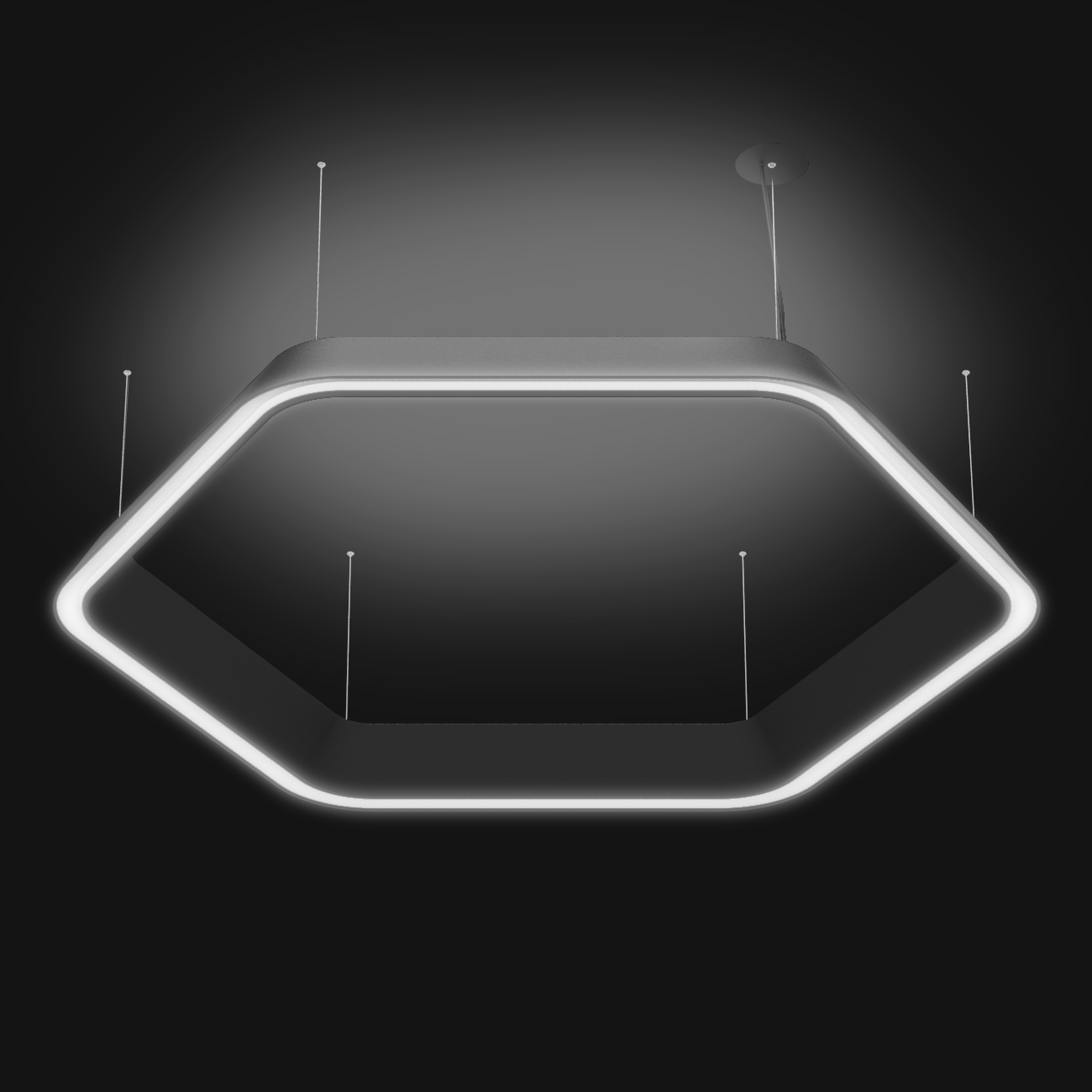

RLY2 is a direct/indirect pendant system with 90° and 120° angles, enabling designers to configure diverse geometric patterns with a seamlessly lit shape. Relay luminaires are designed for high ceilings such as offices, libraries, high-end retail or food markets, and upscale gyms and recreational facilities such as yoga studios.
High-performance TIR optics provide controled and efficient light. The luminaire can be specified with direct or indirect illumination, or a combination of both. Relay’s direct lighting offers reduced glare continuous illumination throughout the fixture, including corners. Indirect lighting features a batwing distribution, to highlight ceiling elements.
Additional flexibility is available with a tunable white option or dim to warm, with a range from 5000K to 2700K, which can be configured with nLight® wireless lighting control solutions.
Acoustic panels may be added to the fixture in four standard and 26 premium colors to complement or accentuate an aesthetic, while absorbing ambient sound in a space. Polyester felt panels, manufactured with recycled plastic bottles (PET), are 100% recyclable.
Specsheets
CCT
2700K , 3000K , 3500K , 4000K , 5000K
CRI
80 CRI, 90 CRI
Color / Finish
Dark Brown , Red , Sky Blue
Controls Options
Photocell
Dimming Range
1% , 5% , 50%
Efficacy
106 lm/w, 113 lm/w
Integrated Brands
Acuity nLight
Lamp Source
LED
Listings
CSA , UL
Lumens
129 Lm, 137 Lm, 138 Lm, 649 Lm, 687 Lm, 692 Lm
Materials
Aluminum
Mounting
Arc , Arm , Pendant , Surface
Voltage
120 V , 277 V , 347 V
Watts
6 w, 12 w
