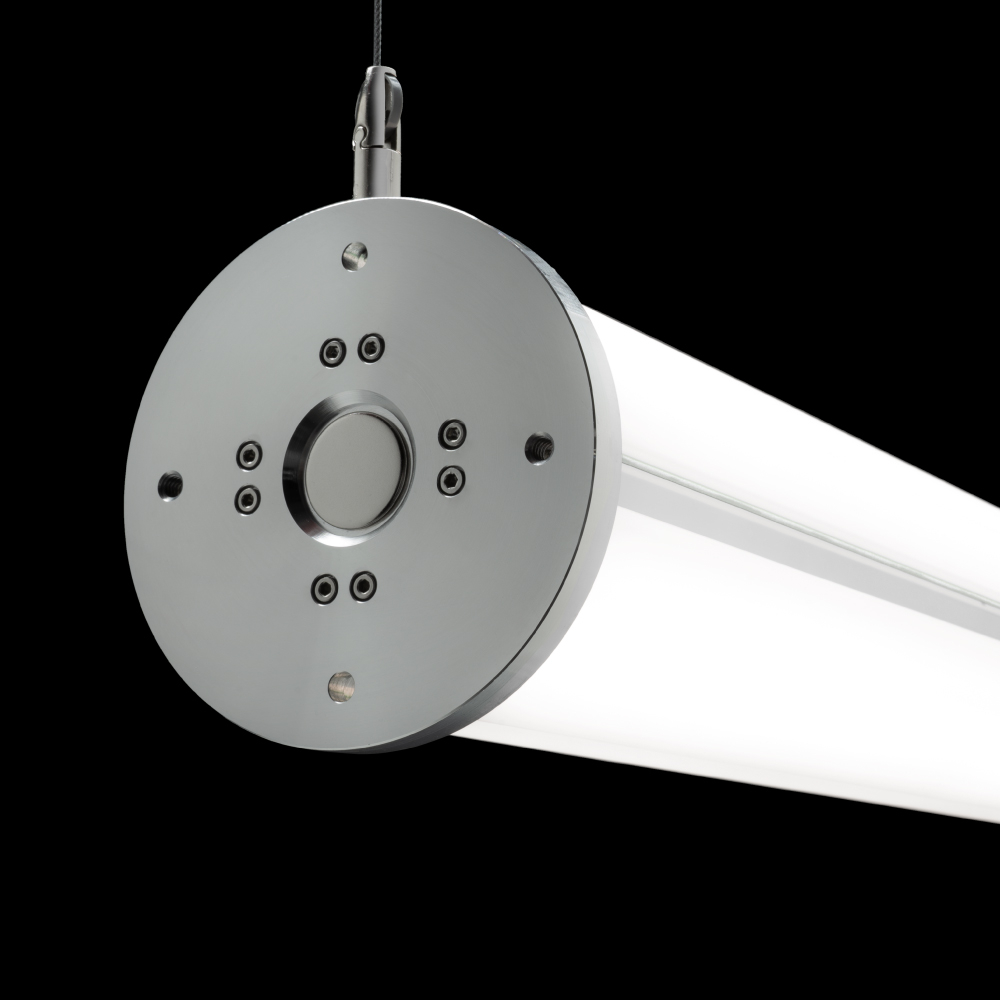

360+ Series
by LUX Dynamics
BIM & CAD Files
Photometry
Beam Angle
120 , 360
CCT
2700K , 3000K , 3500K , 4000K , 5000K , 5700K , 6500K
CRI
80 CRI, 90 CRI
Dimensions
H: 5 In. L: 23 In. W: 4 In., L: 46 In., L: 92 In.
Dimming Protocol
0-10 V
Dynamic LED Color
RGB , Tunable White
Efficacy
117 lm/w, 124 lm/w, 125 lm/w, 126 lm/w, 127 lm/w, 129 lm/w, 145 lm/w, 151 lm/w, 154 lm/w, 155 lm/w, 156 lm/w, 158 lm/w, 160 lm/w, 161 lm/w, 162 lm/w, 163 lm/w, 164 lm/w, 167 lm/w, 172 lm/w, 173 lm/w, 174 lm/w, 175 lm/w
Listings
UL
Lumens
6294 Lm, 6482 Lm, 6565 Lm, 6704 Lm, 7814 Lm, 8048 Lm, 8134 Lm, 8150 Lm, 8323 Lm, 8377 Lm, 8484 Lm, 8664 Lm, 8735 Lm, 8996 Lm, 9111 Lm, 9304 Lm, 12589 Lm, 12965 Lm, 13130 Lm, 15628 Lm, 16095 Lm, 16268 Lm, 16300 Lm, 16646 Lm, 16754 Lm, 16967 Lm, 17328 Lm, 17471 Lm, 17993 Lm, 18222 Lm, 18609 Lm, 25177 Lm, 25930 Lm, 26260 Lm, 26817 Lm, 31256 Lm, 32190 Lm, 32536 Lm, 32600 Lm, 33292 Lm, 33935 Lm, 34655 Lm, 34942 Lm, 35508 Lm, 35986 Lm, 36444 Lm, 37218 Lm
Materials
Acrylic , Aluminum , Polycarbonate , Steel
Ratings & Compliance
ARRA , Build America Buy America (BABA) , Buy America , Buy American Act (BAA) , DLC , Damp , Dry , IK10 , Industrial , Made in America
Voltage
120-277 V , 347 V , 480 V
Warranty
5 yr, 10 yr
Watts
51 w, 52 w, 53 w, 54 w, 103 w, 104 w, 105 w, 108 w, 207 w, 208 w, 211 w, 216 w
Weight
5 lbs, 10 lbs, 20 lbs

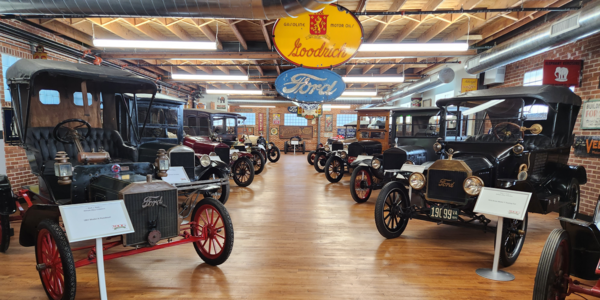

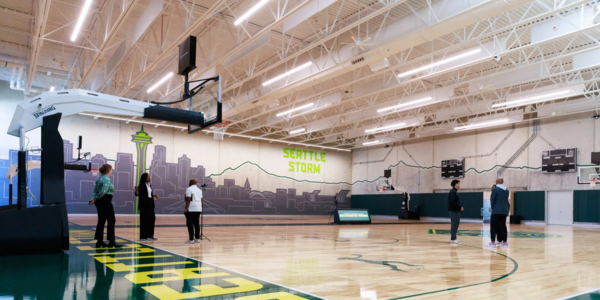

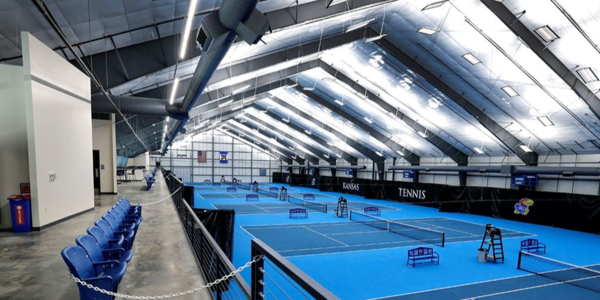

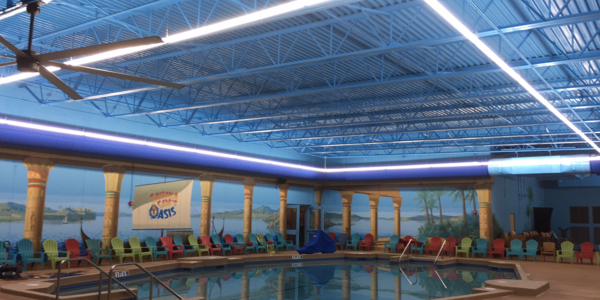

View This Product In Action
