BSS720
by Bartco

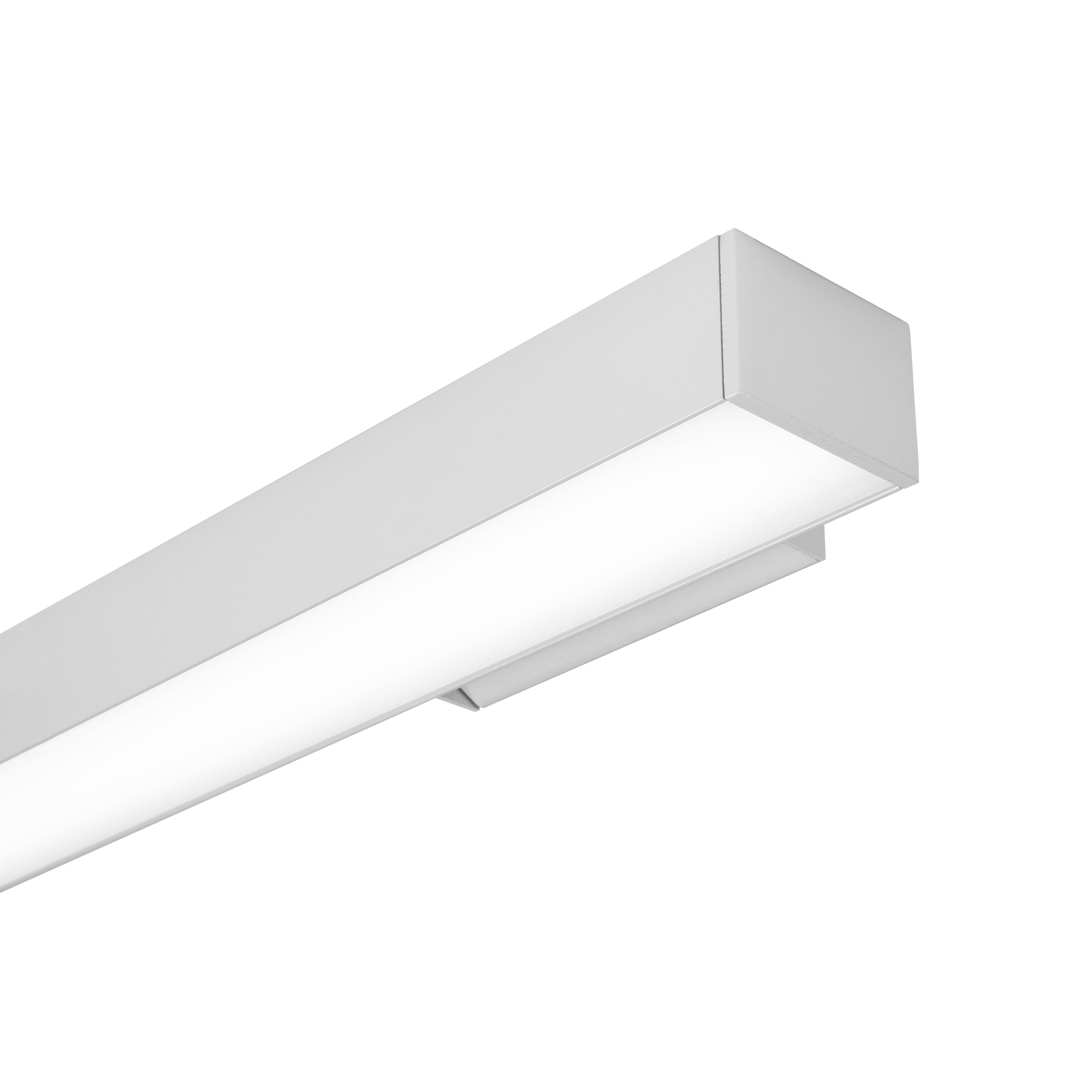

The BSS720 is a 1-5/8" tall by 2-1/4" wide linear LED luminaire with asymmetric optics for mullion or wall mount applications.
Specsheets
CCT
2700K , 3000K , 3500K , 4000K
CRI
90
Color / Finish
Black , Bronze , Clear Anodized Aluminum , Custom , Matte Black , Matte White , Silver , White
Dimensions
L: 22.63 In. W: 2.88 In. H: 1.63 In., L: 33.63 In., L: 44.63 In., L: 55.63 In., L: 66.63 In., L: 77.63 In., L: 88.63 In.
Dimming Protocol
0-10 V , DALI , ELV (Trailing Edge) , Lutron , Triac (Leading Edge) , eldoLED
Dimming Range
1% , < 1% , Non-Dimmable
Distribution
Direct , Indirect , Wide
Efficacy
87, 93, 96, 103, 111, 114
Lamp Life
50000
Lamp Source
LED
Listings
UL , cUL
Lumens
1944, 2336, 2646, 3166, 4018, 4806
Lumens/Linear Ft.
525, 630, 710, 850, 1080, 1290
Materials
Acrylic , Aluminum
Mounting
Arc , Stem , Surface , Wall
Ratings & Compliance
Damp , Dry , Made in America
Static LED Color
Red
Voltage
120-277 V
Warranty
5 yr
Watts / Linear Ft.
5.4, 5.4, 5.5, 7.6, 7.7, 12.4, 12.5
